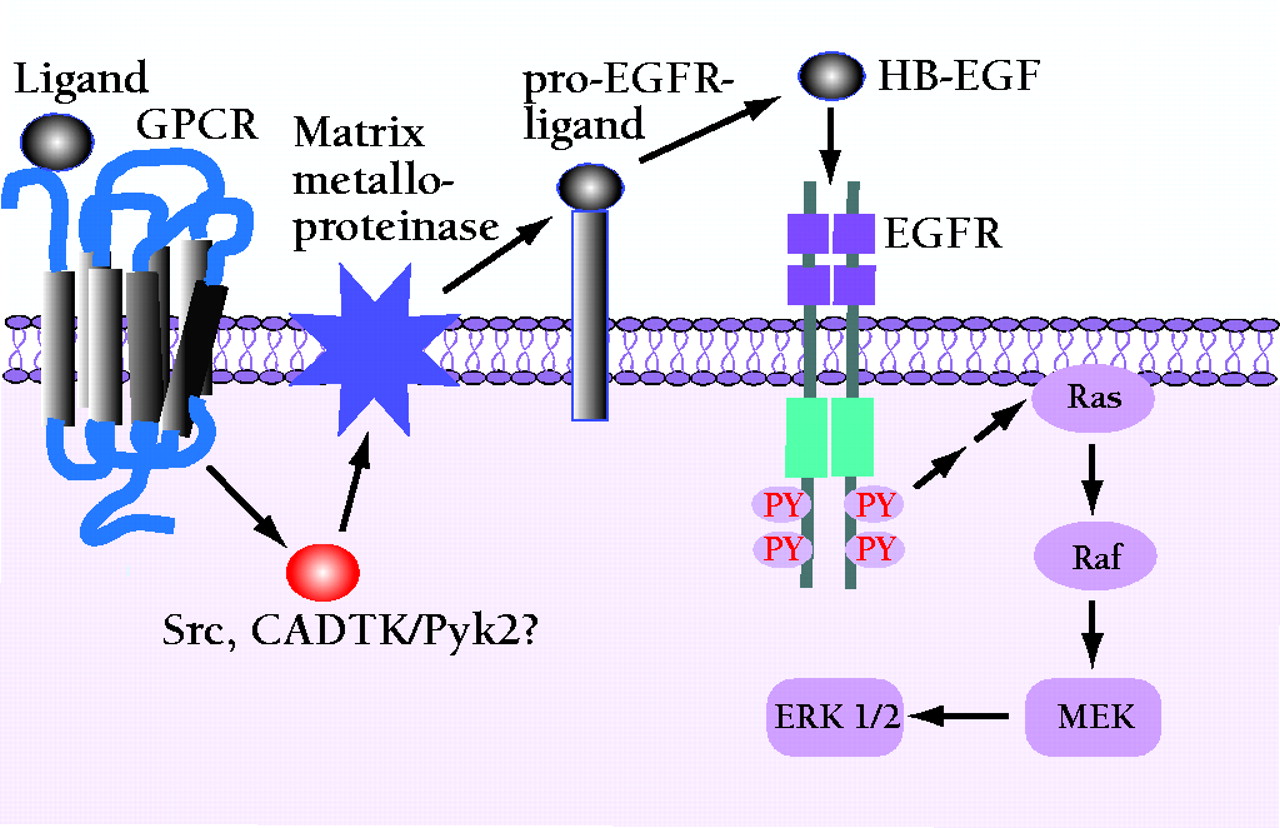

Figure 1.
Signaling model of EGFR transactivation by crosstalk with a G protein-coupled receptor (GPCR). A mechanistic signaling model is described for heterologous GPCR coupling to an EGFR-dependent activation of the Ras/mitogen-activated
protein kinase (MAPK) pathway (1). GPCR ligand-specific binding activates GPCR-Src- or calciumdependent tyrosine kinase- (CADTK,
or Pyk-2) -dependent intracellular signals that promote the release from the cell surface of pro-HB-EGF through the matrix
metalloproteinase-mediated proteolytic cleavage of this and other EGF-like growth factor precursors. Free, active HB-EGF binds
to EGFR, leading to transactivation of the EGFR.
