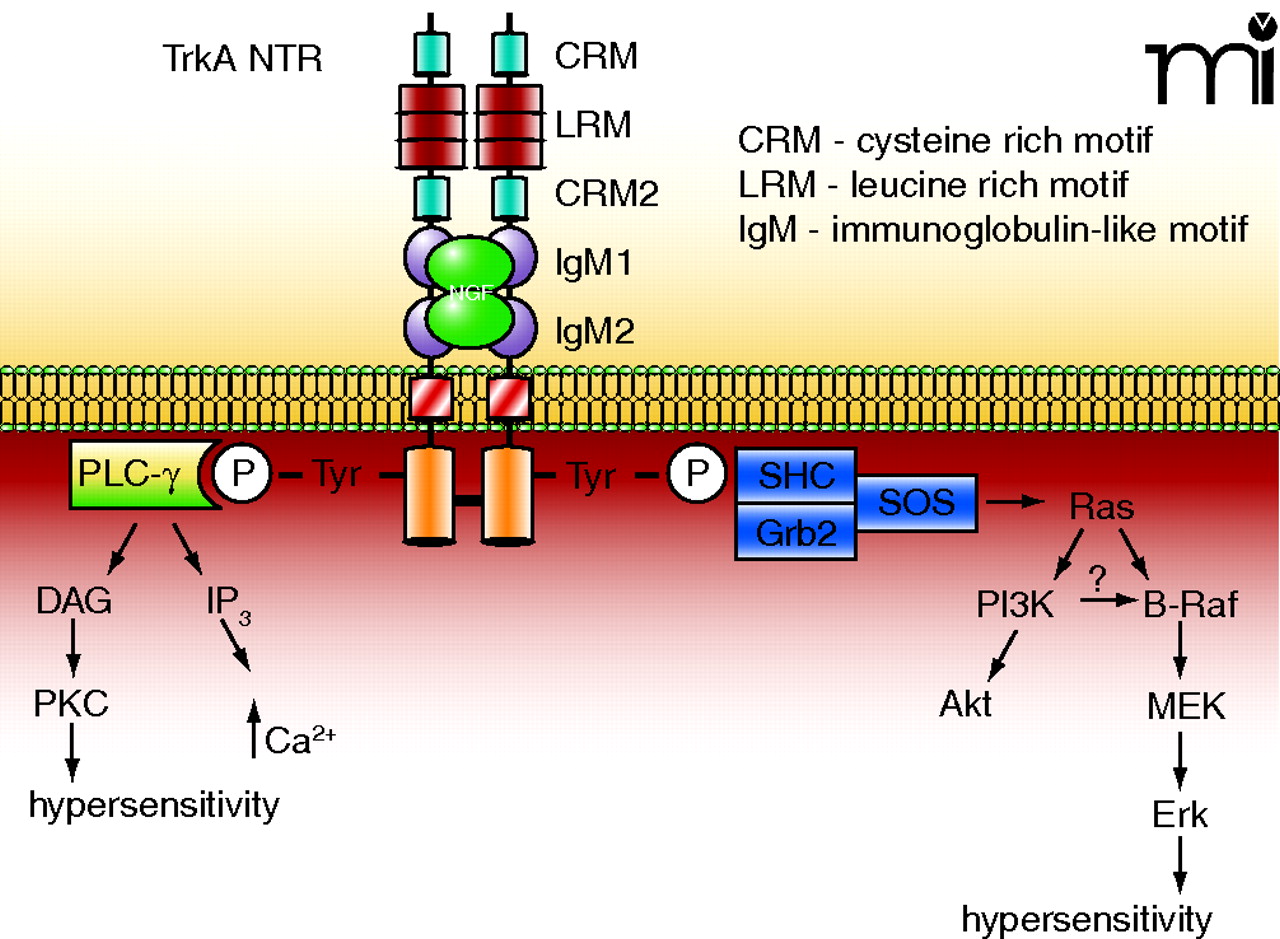

Figure 3.
The TrkA NTR and its associated intracellular signaling pathways. The TrkA NTR is made up of multiple extracellular domains that consist of two cysteine-rich motifs (CRM), three leucine rich
motifs (LRM) and two immunoglobulin-like motifs (IgM). Binding of NGF results in dimerization and the cross-phosphorylation
of tyrosine residues on the intracellular signalling domains. These tyrosines form the binding sites for the scaffolding proteins
Shc-Grb2-SOS, which leads to the activation of the small G-protein Ras, followed by activation of the serine-threonine kinases
Raf, MEK, and the MAPK, Erk. In sensory neurons, the activation of Erk has been linked to hypersensitivity. Ras can also activate
PI3K and its downstream effector Akt. In some cells, PI3K can activate B-Raf which leads to phosphorylation of Erk. The phosphorylated
tyrosines also form the binding site for PLC-γ, which consequently results in the activation of PKC. It is well established
that PKC plays an important role in regulating the sensitivity of sensory neurons to noxious stimulation.
